Introduction
Coding Kit for BBC micro:bit

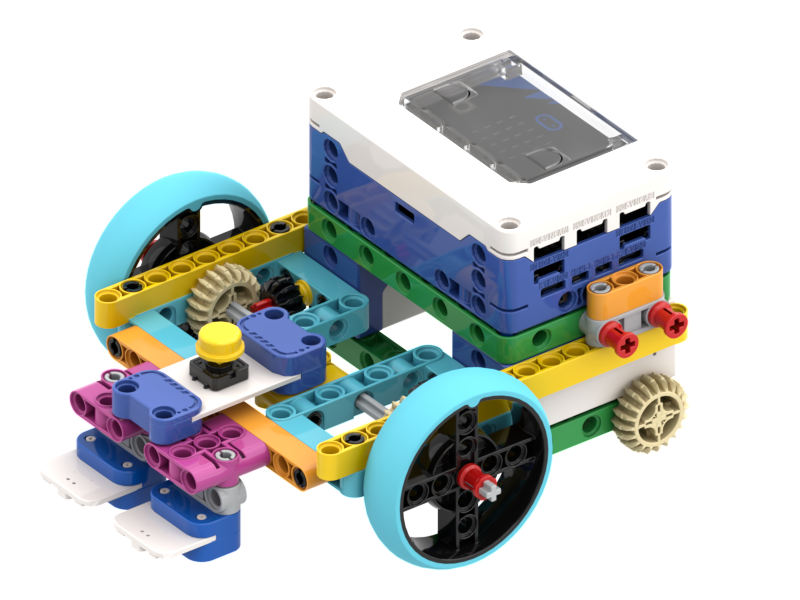

Coding Kit for BBC micro:bit is based on the micro:bit main control board and includes sensors, actuators, and other accessories. The set is perfectly designed to integrate with LEGO parts, making it ideal for students to create micro:bit-based technology and creative projects. This document focuses on the main control board, sensors, actuators, and related software extensions.
Parts List
|
|
|
|
|---|---|---|---|
micro:bit Smart Hub |

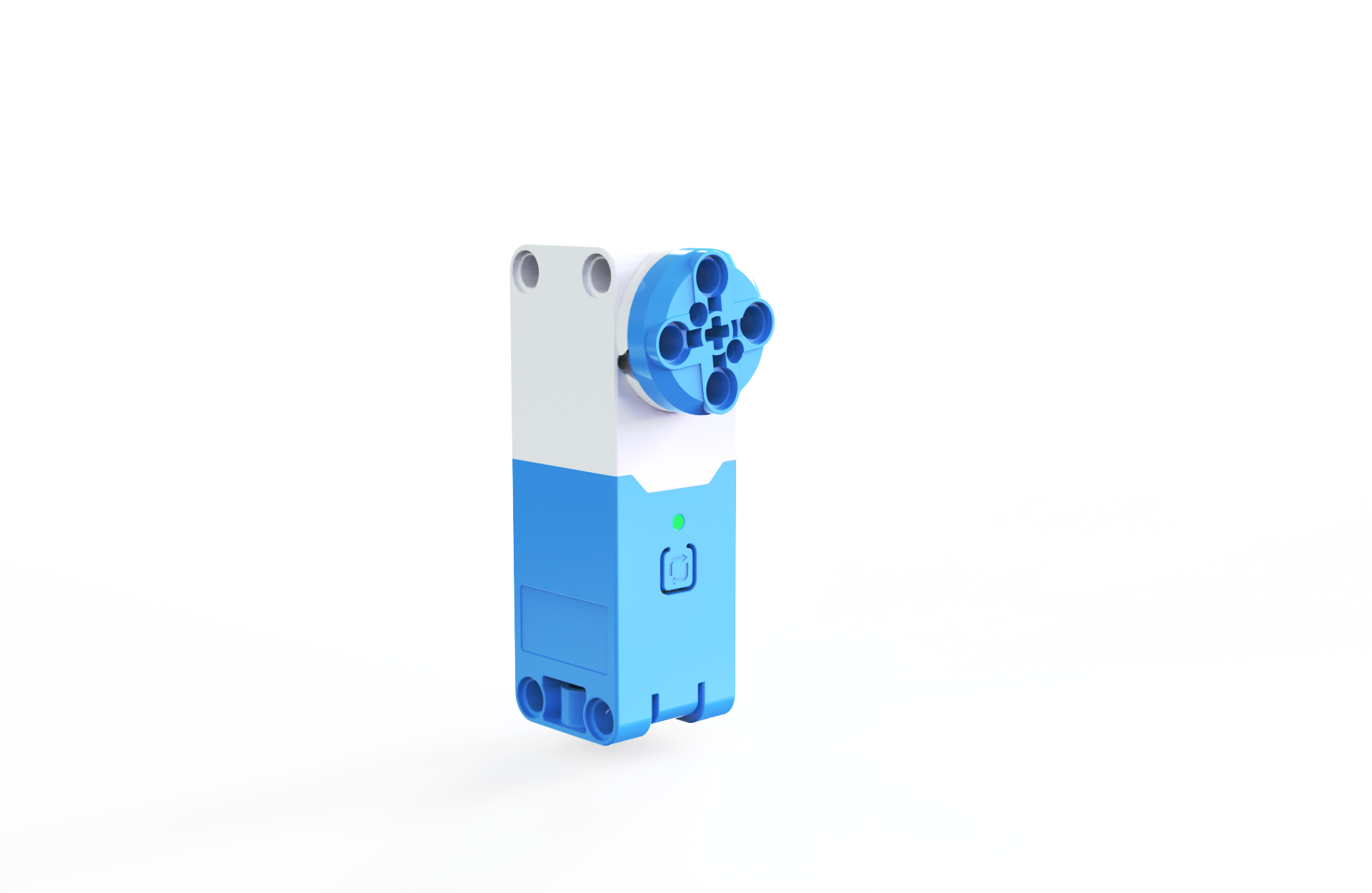

Servo Motor |
DC Motor |

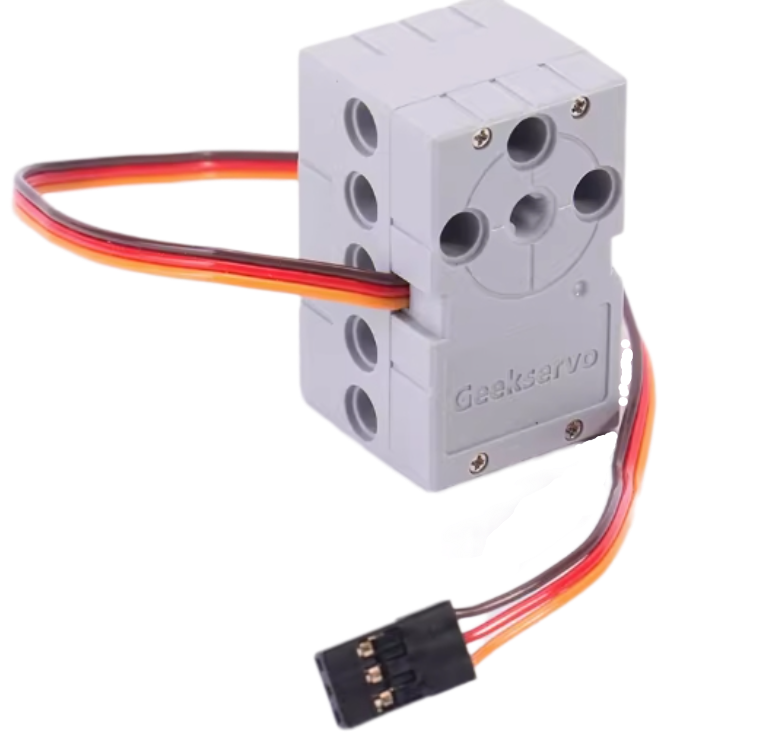

Geek Servo |
|
|
|
|

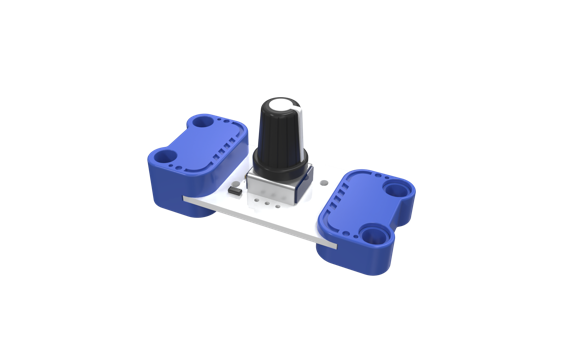

Potentiometer Module |

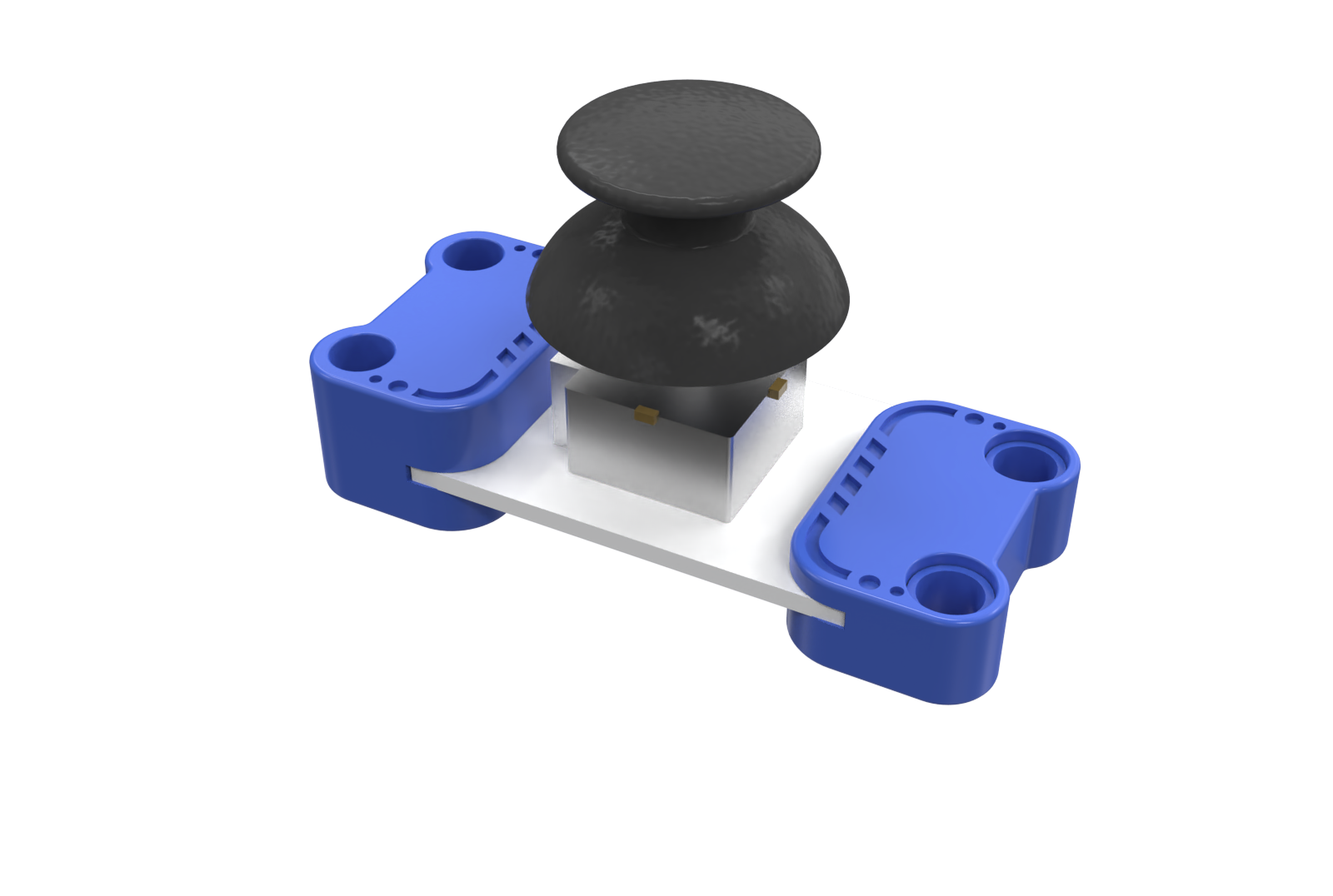

Joystick Module |

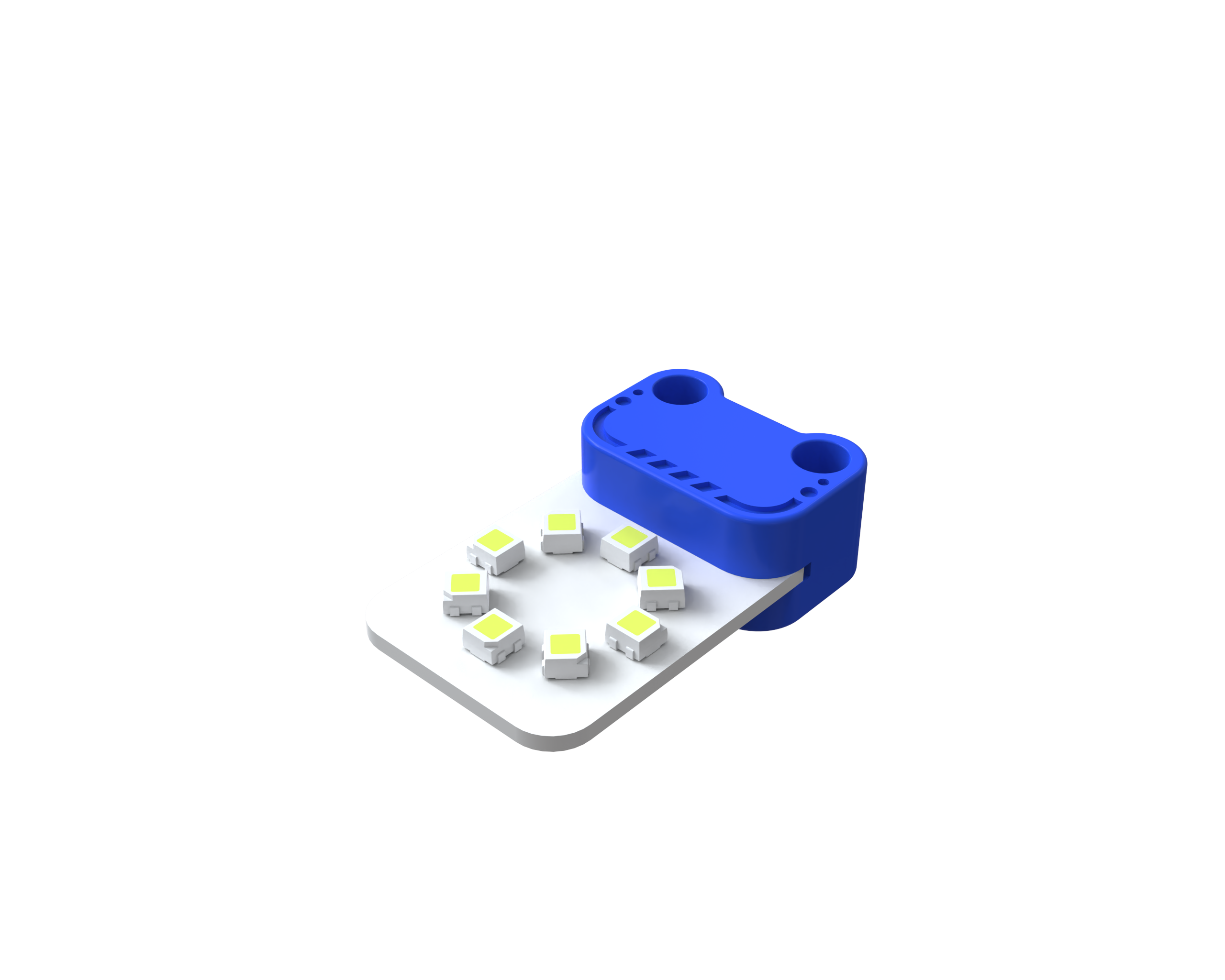

RGB LED Module |
Fan Module |
|
|
|
|

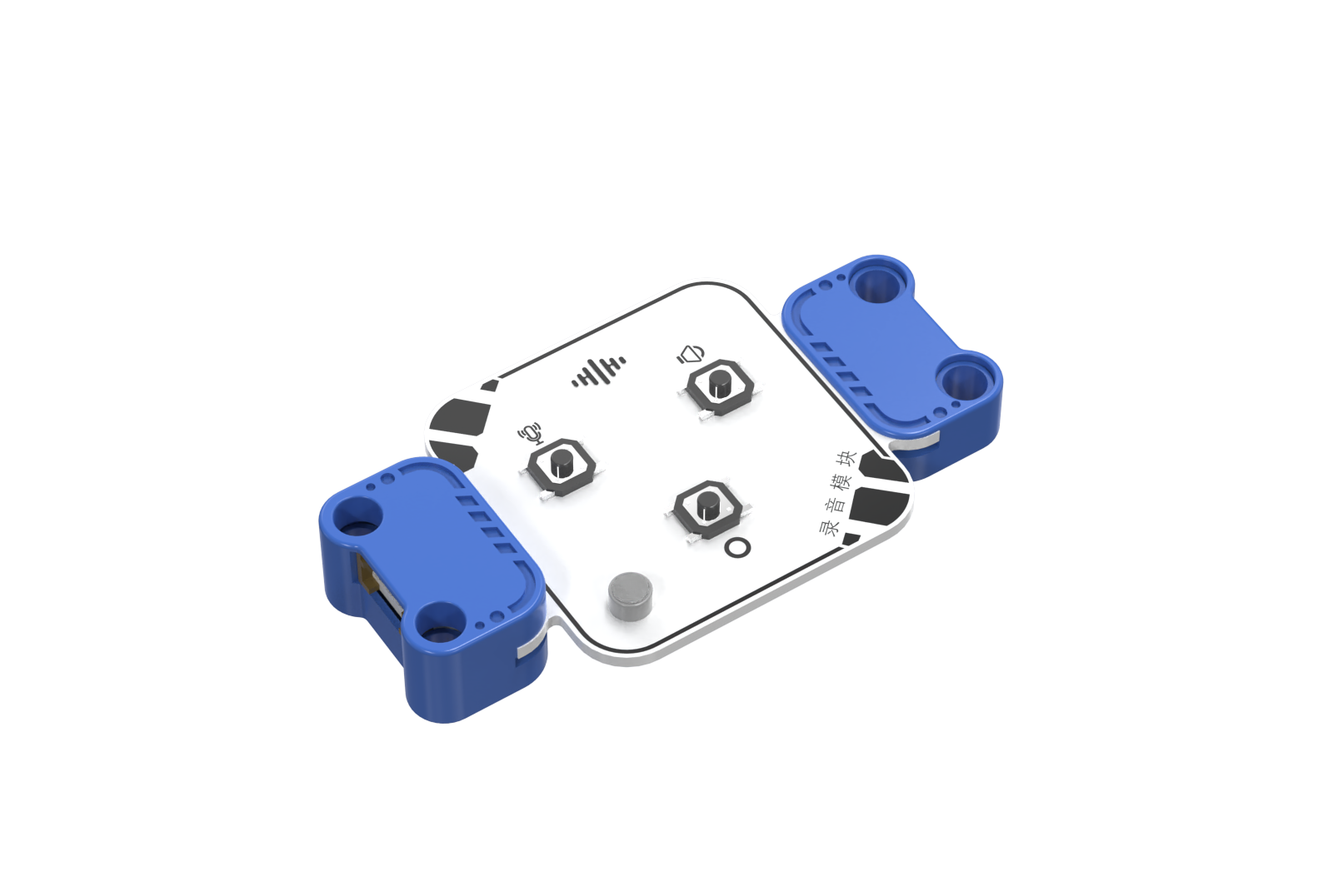

Recording Module |

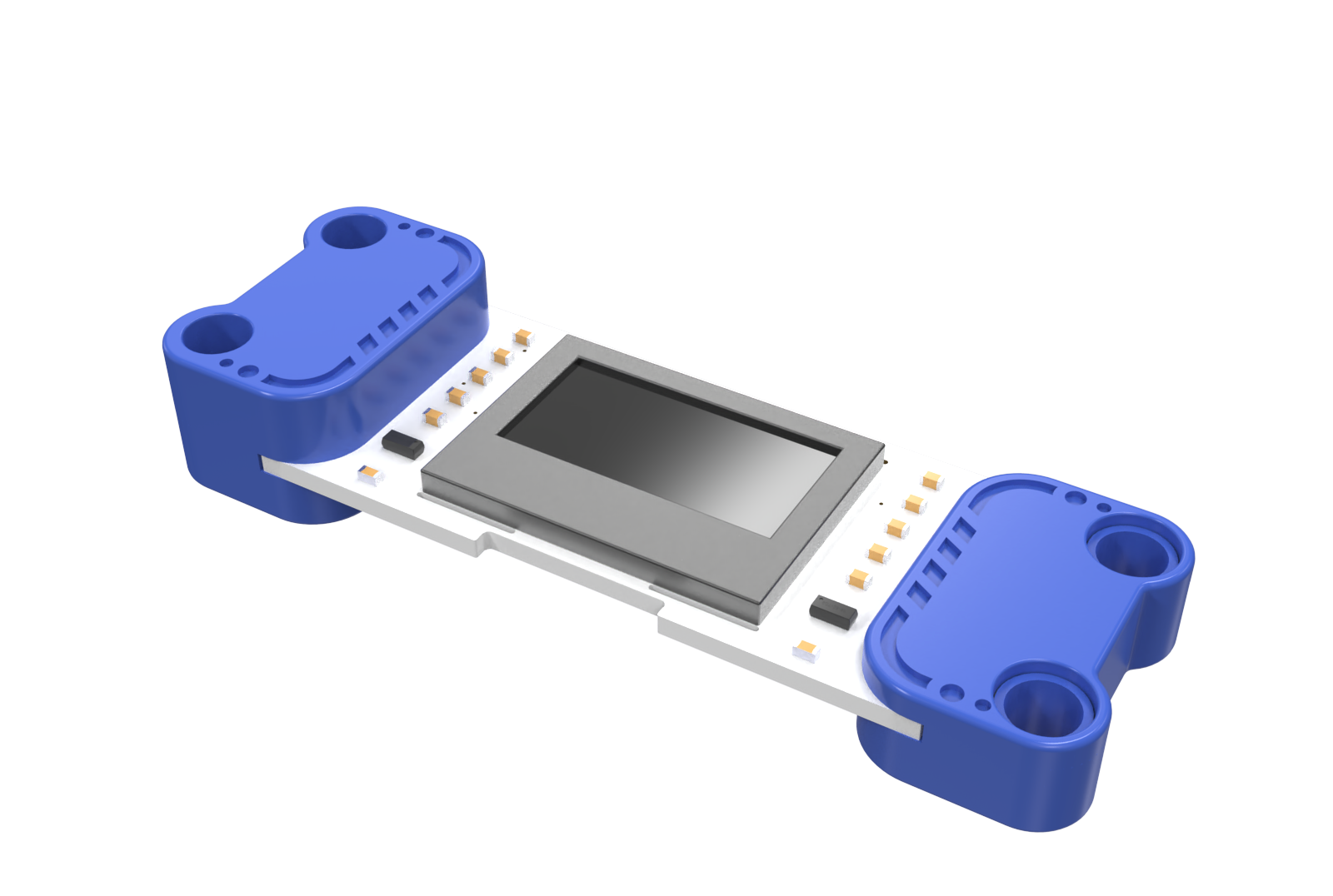

OLED Module |
Laser Module |
Electromagnet Module |
|
|
|
|

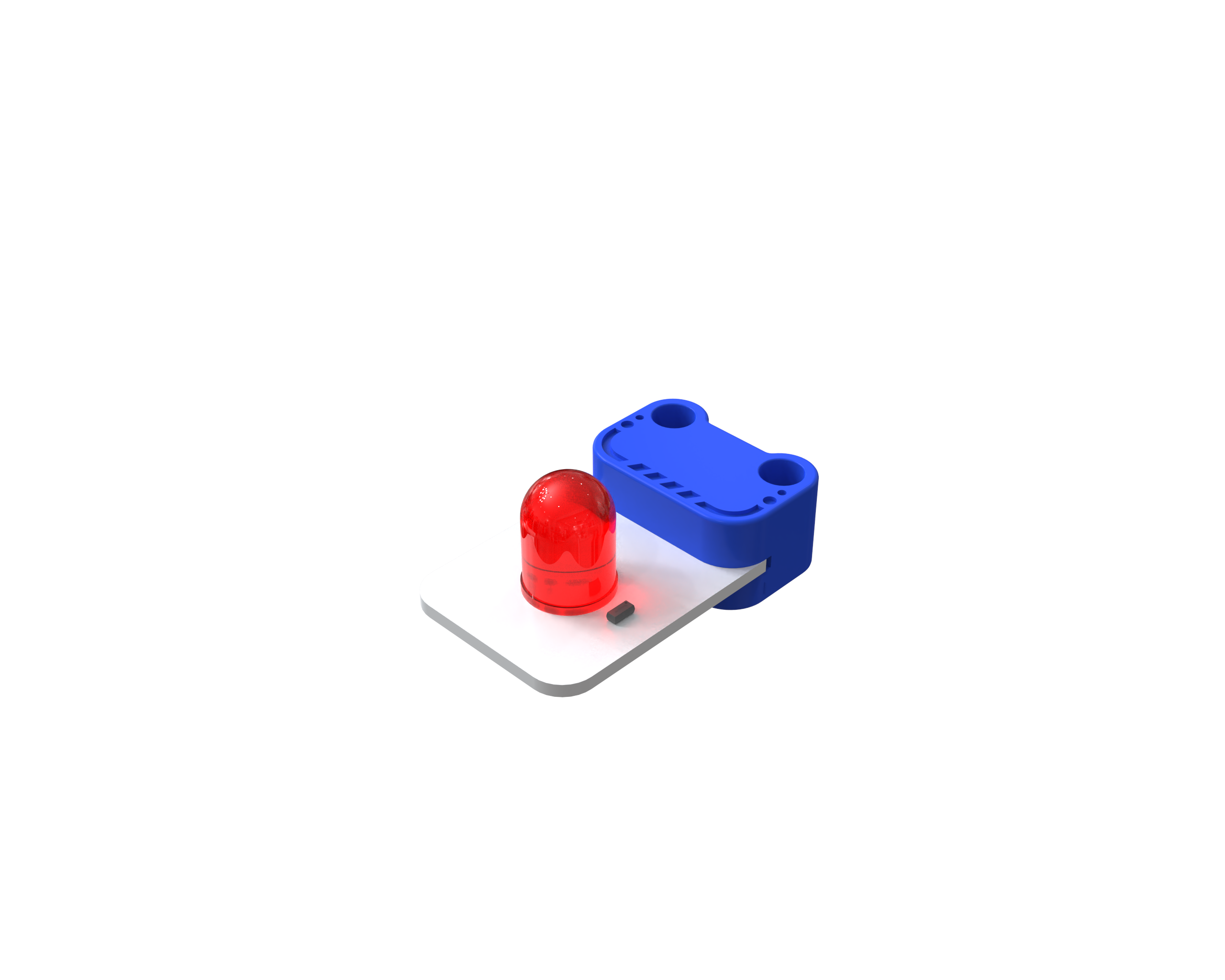

Red LED Module |

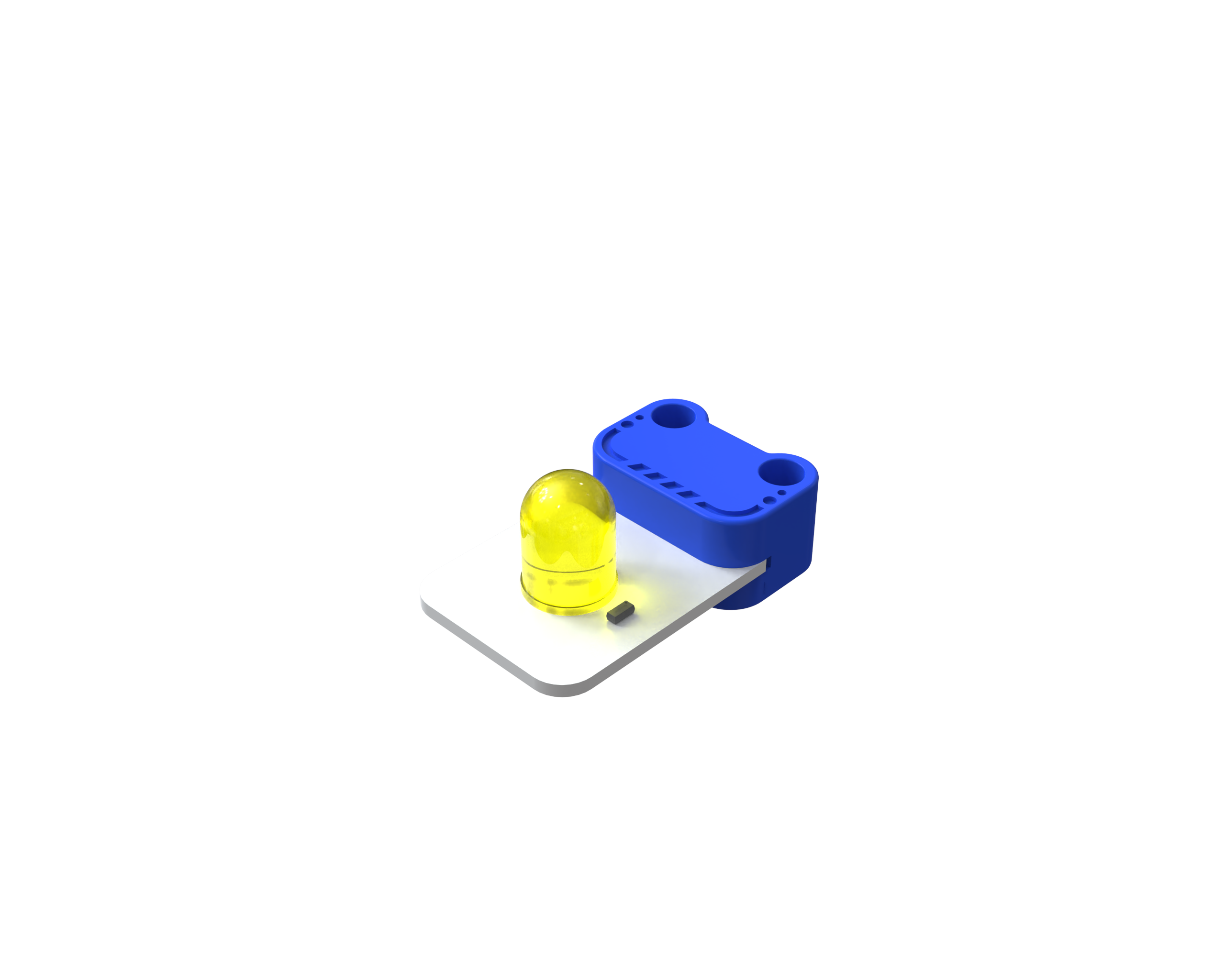

Yellow LED Module |

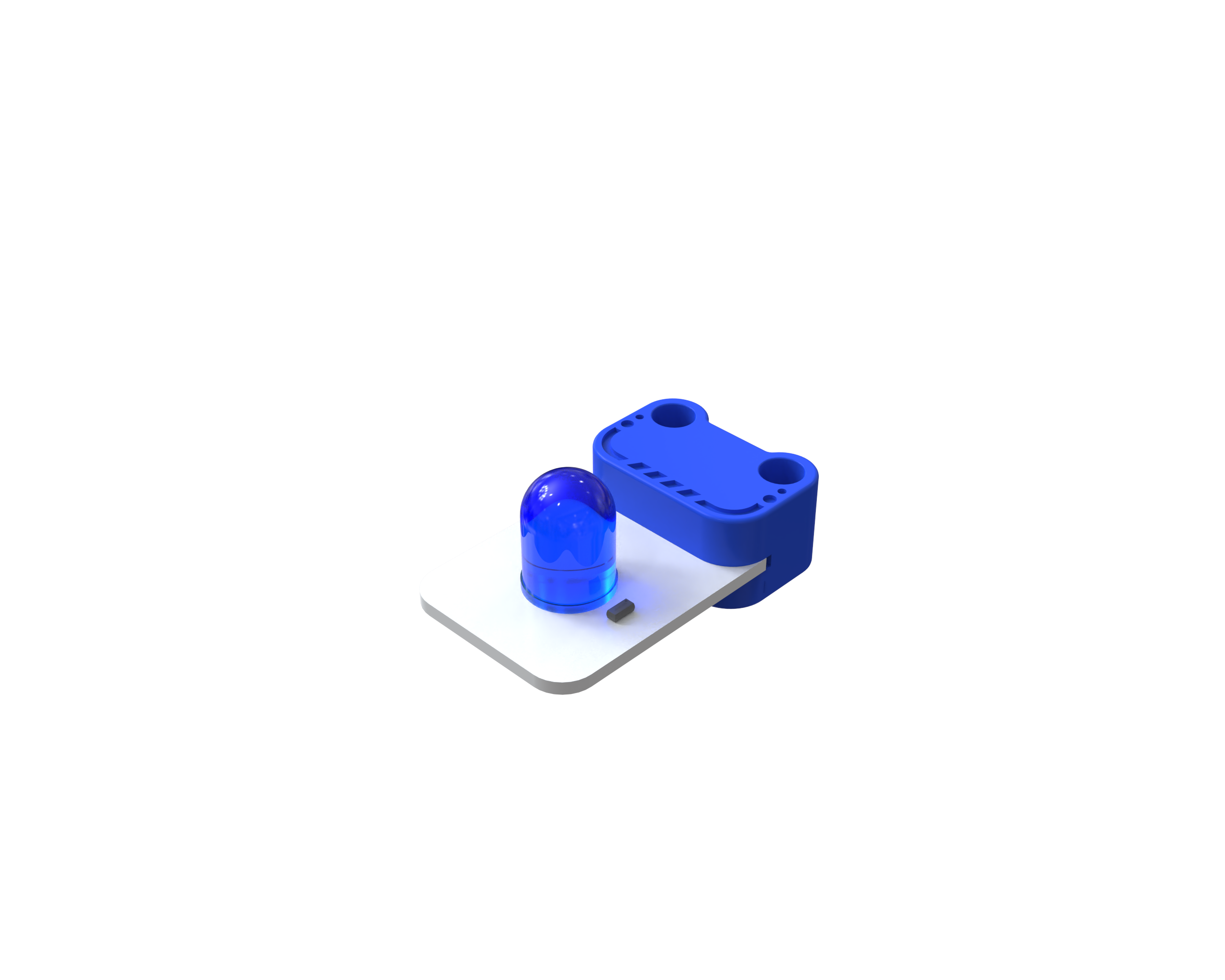

Blue LED Module |
Green LED Module |
|
|
|
|

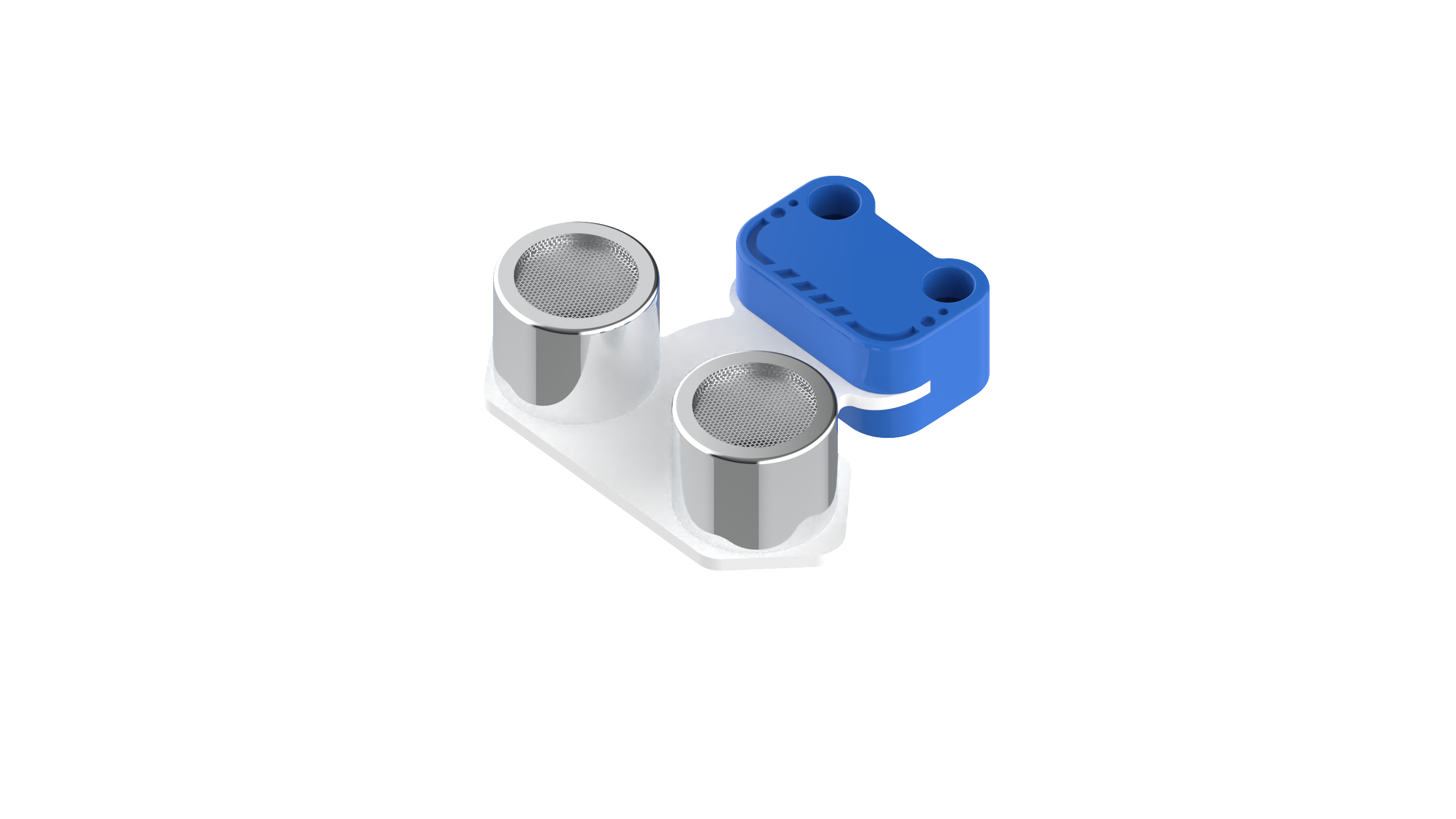

Ultrasonic Sensor |

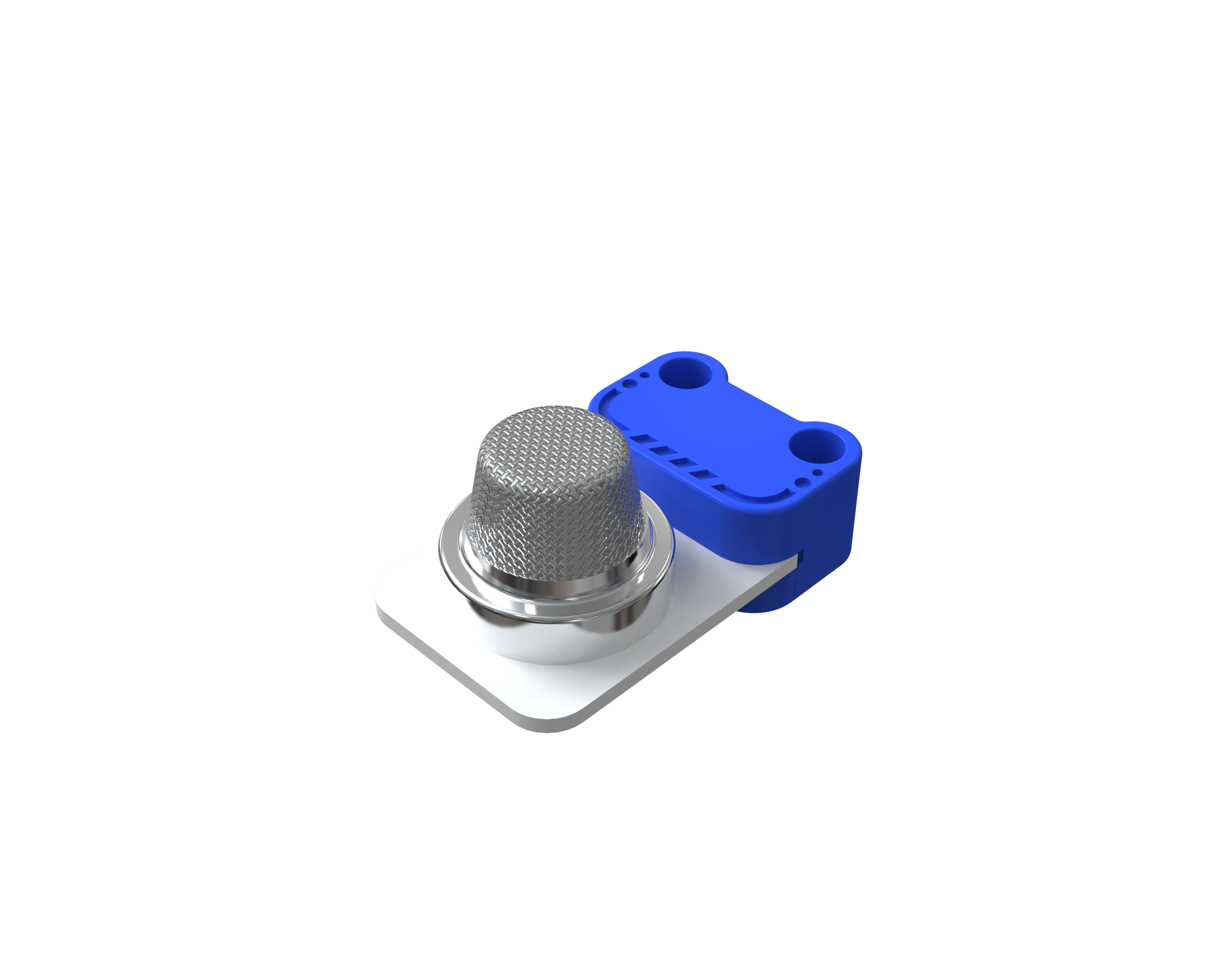

MQ-2 Gas Sensor |

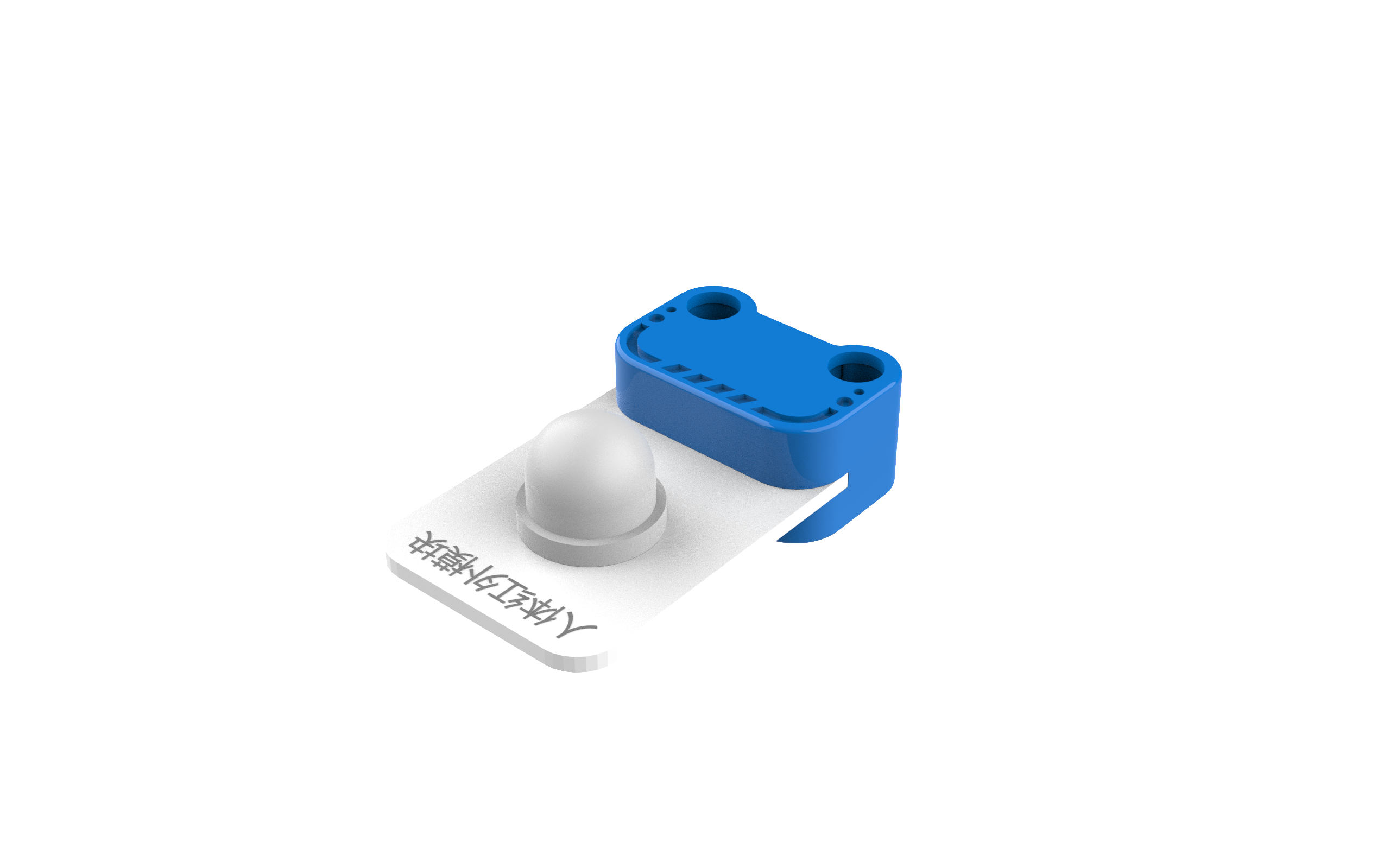

PIR Sensor |

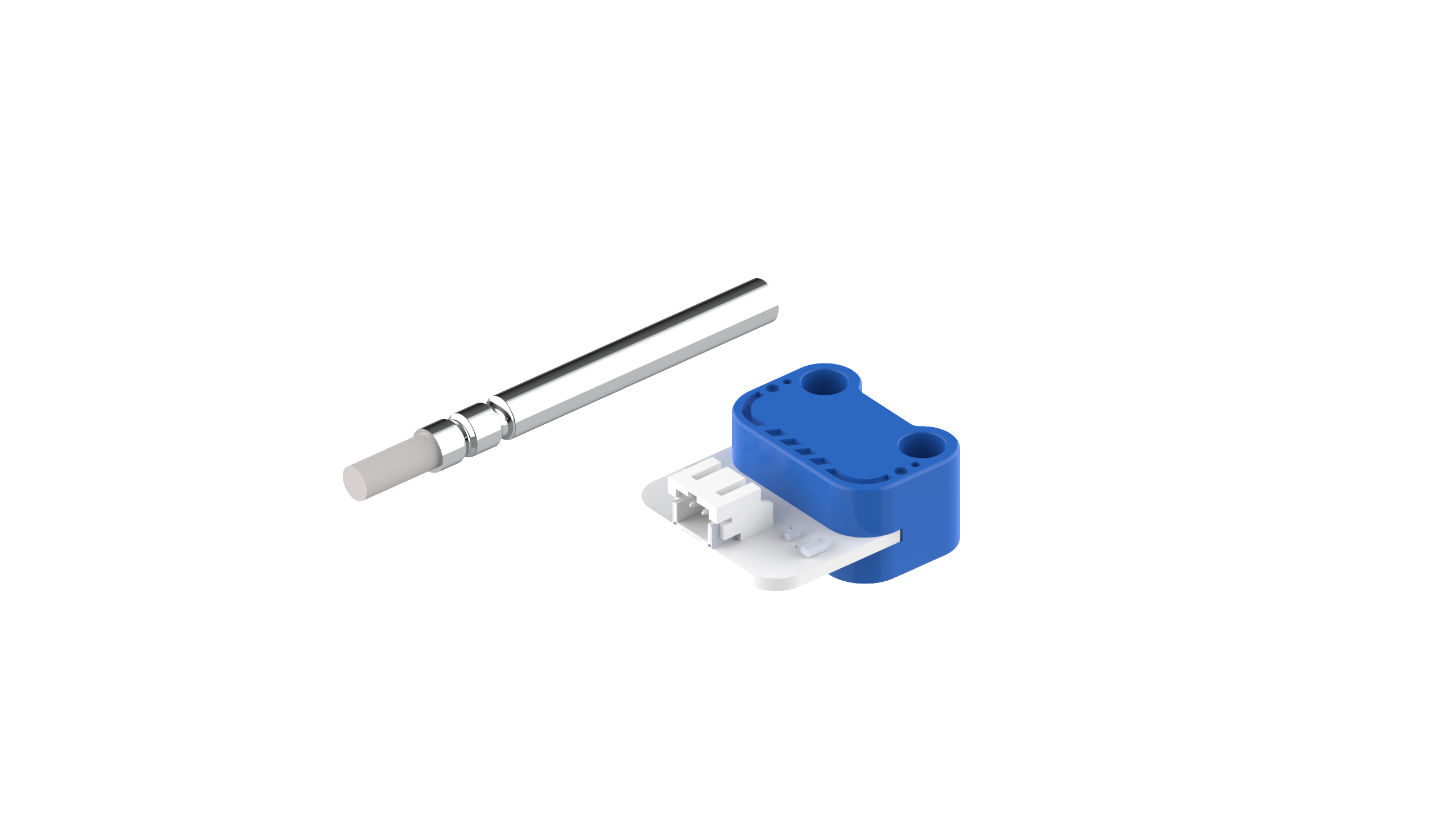

Temperature Sensor |
|
|
|
|

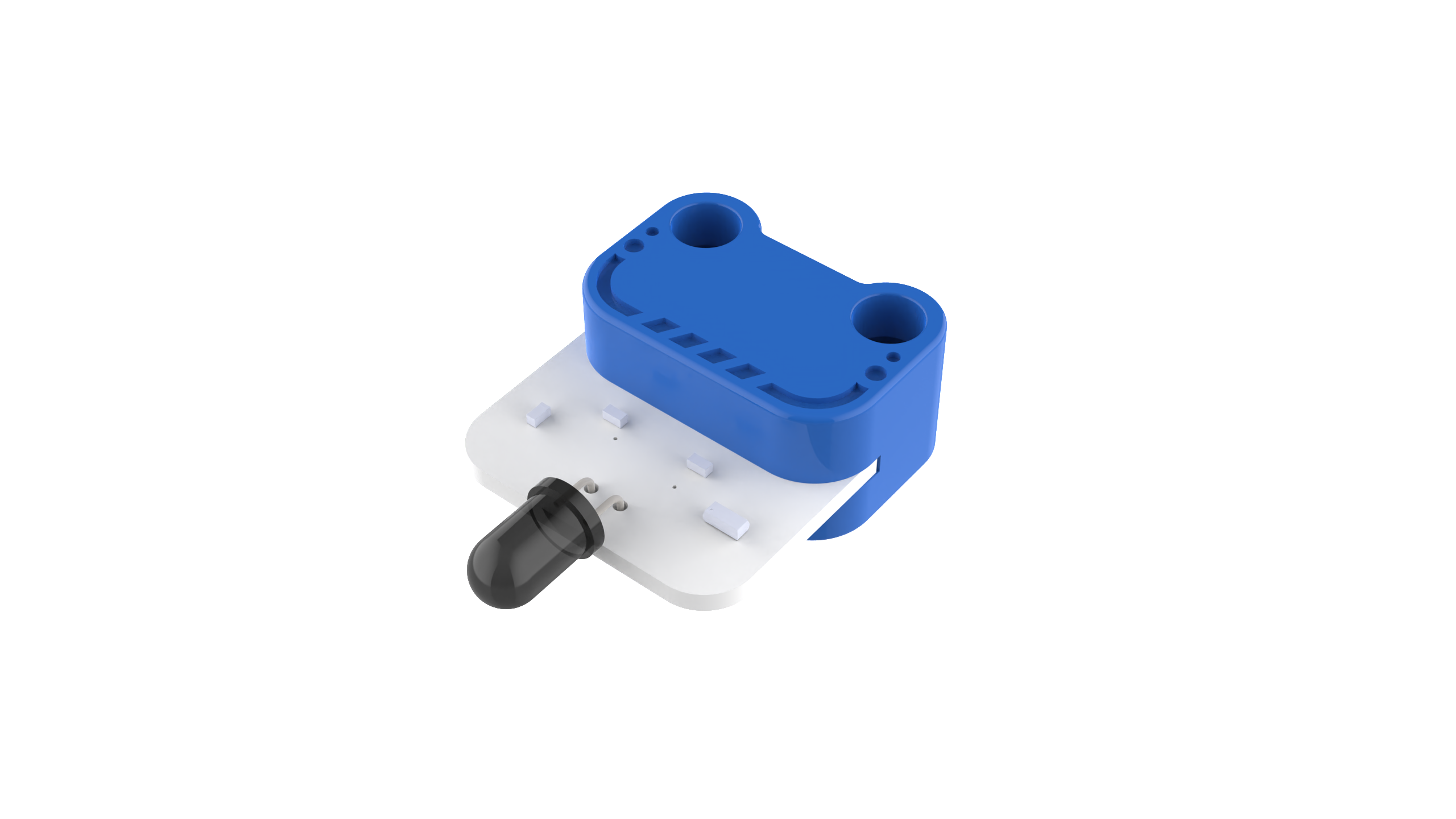

Flame Sensor |
Hall Sensor |
Grayscale Sensor |

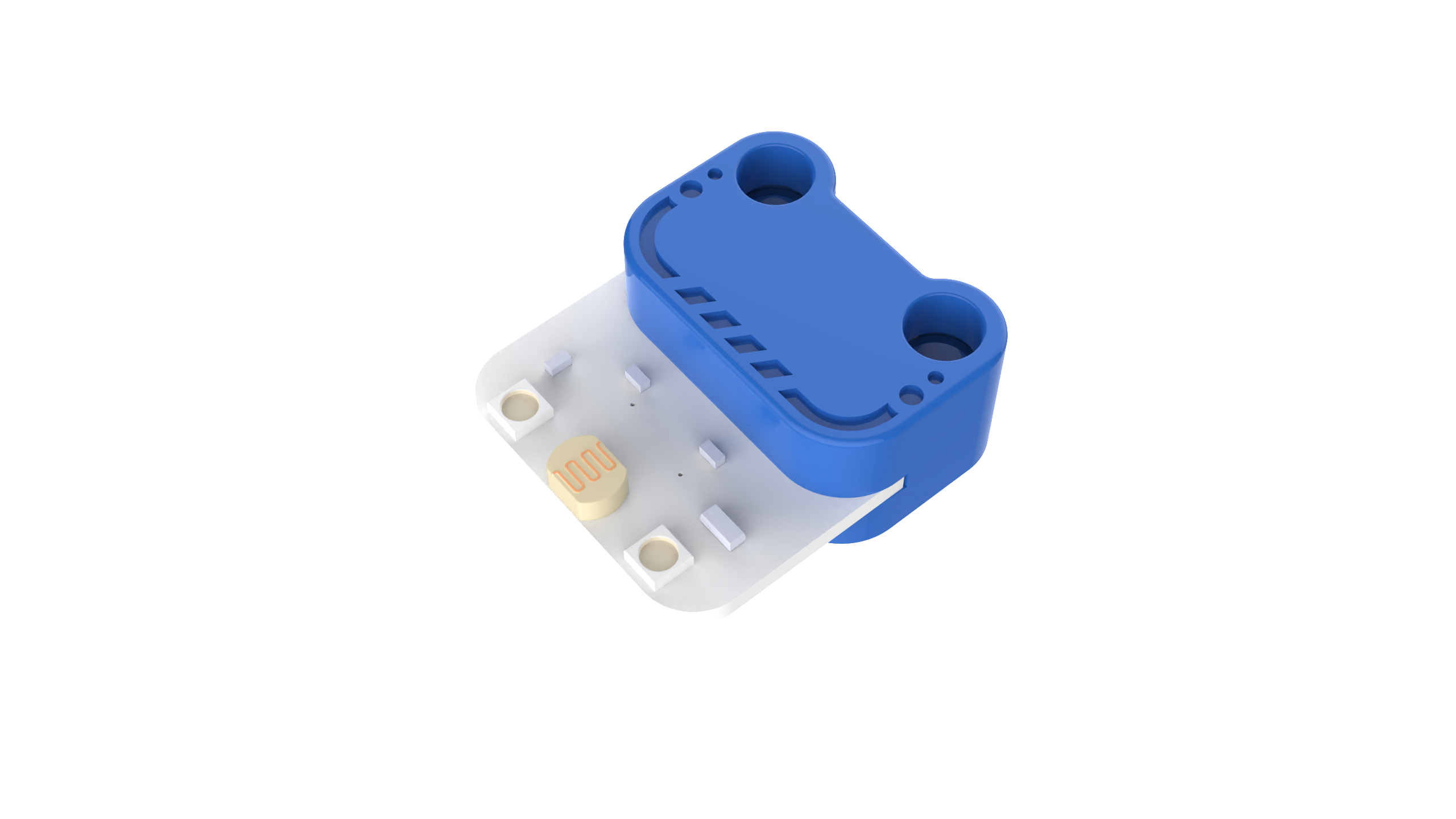

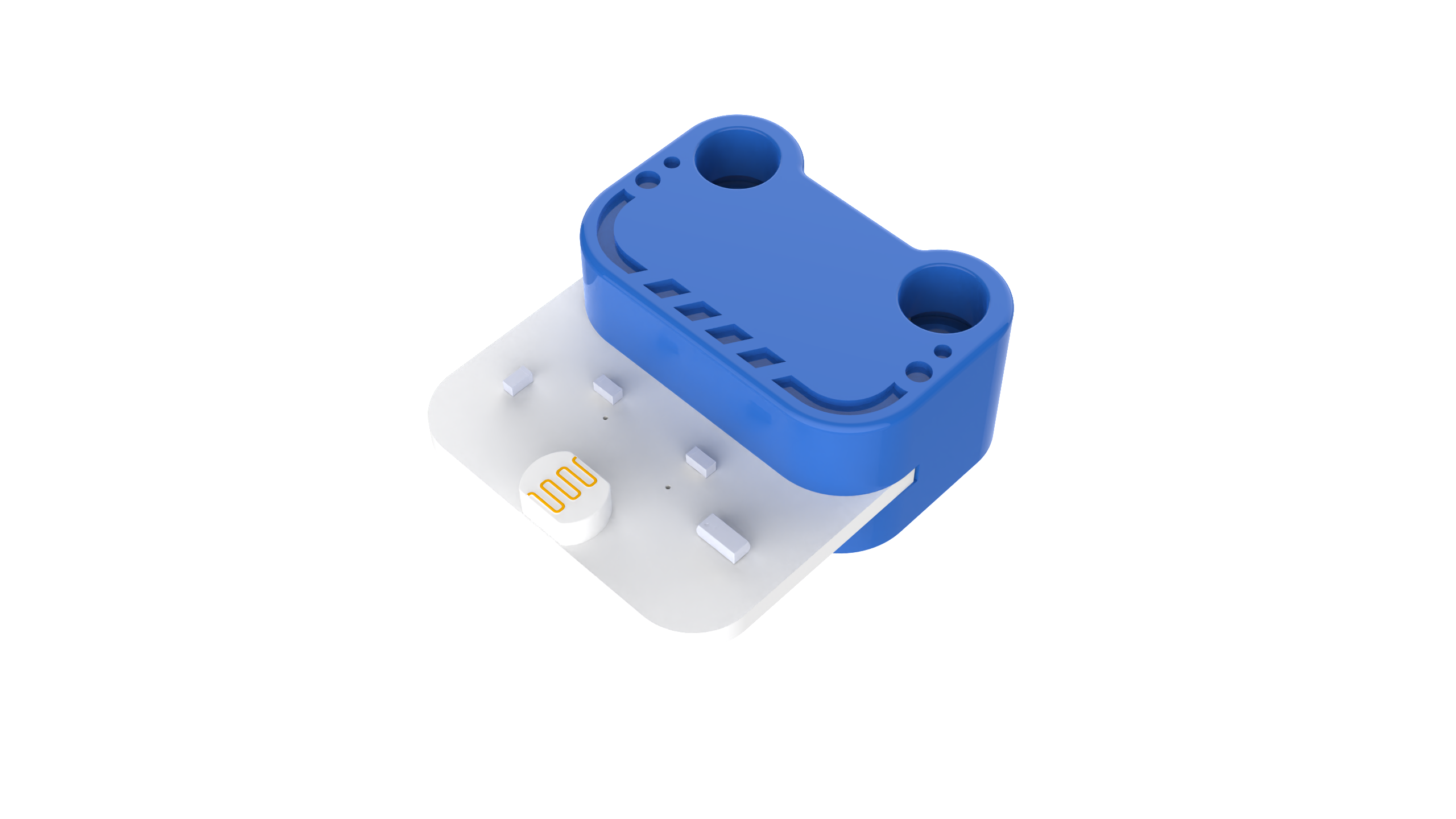

Photosensitive Sensor |
|
|
|
|
Button Sensor |

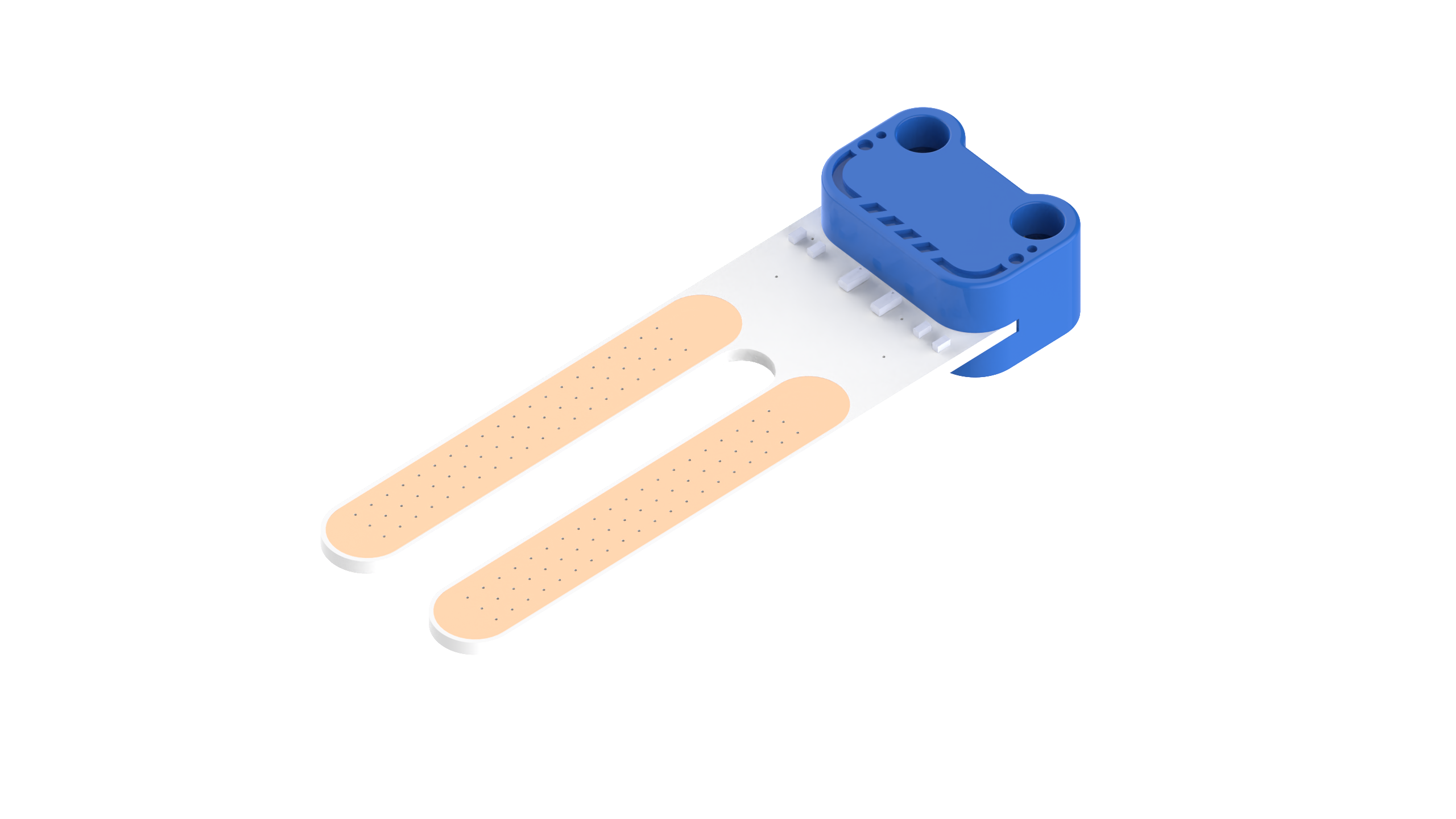

Soil Moisture Sensor |
Water Level Sensor |
Long-Range Photoelectric Sensor |
|
|
|
|
Six way Color&Gray Sensor |

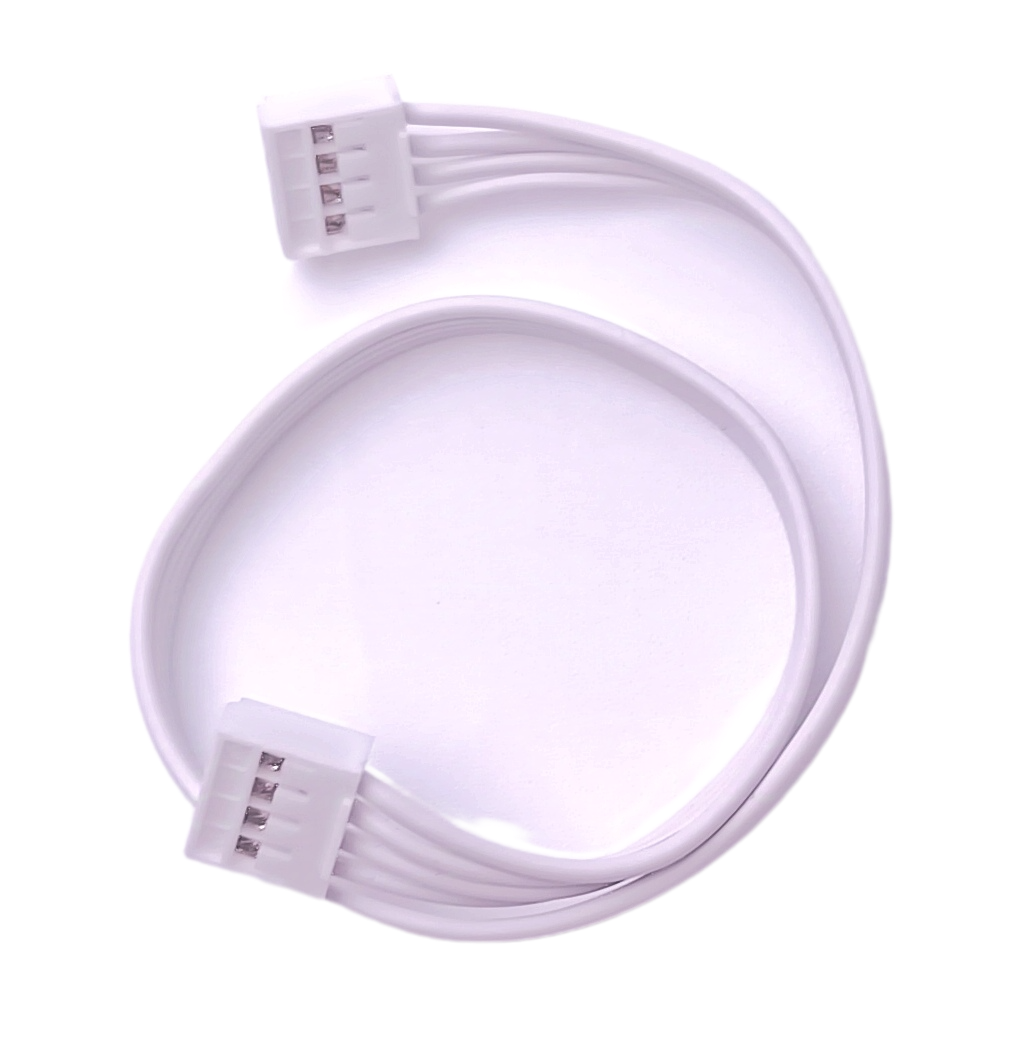

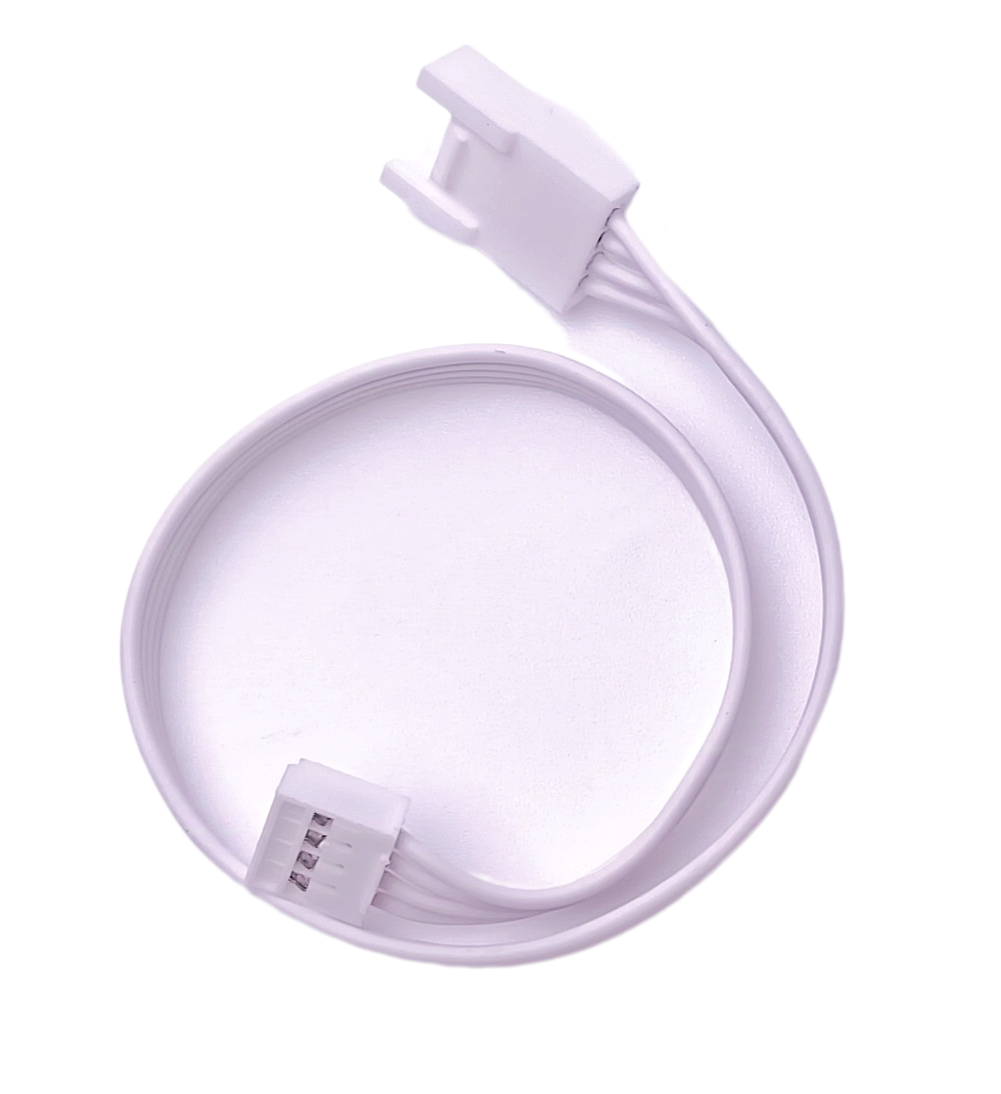

Grove Cable |
Grove Male-to-Female Cable |
The above shows the modules and sensors included in the set.
Please refer to the actual product for photos.
List of electronic components in the kit
Item |
AI Coding Set for BBC micro:bit -V1.0 |
AI Coding Set for BBC micro:bit -V2.0 |
BBC micro:bit Innovation Set |
BBC micro:bit Expansion Set |
|---|---|---|---|---|
micro:bit Smart Hub |
1 |
1 |
1 |
1 |
Servo Motor |
— |
2 |
— |
— |
DC Motor |
4 |
— |
4 |
— |
Geek Servo |
2 |
2 |
2 |
— |
Potentiometer Module |
1 |
1 |
1 |
— |
Joystick Module |
— |
1 |
— |
1 |
RGB LED Ring Module |
1 |
1 |
— |
— |
Fan Module |
1 |
1 |
— |
— |
Recording Module |
— |
1 |
— |
— |
OLED Module |
1 |
1 |
1 |
— |
Laser Module |
1 |
1 |
1 |
— |
Electromagnet Module |
1 |
1 |
— |
— |
Red LED Module |
1 |
1 |
1 |
— |
Yellow LED Module |
1 |
1 |
1 |
— |
Blue LED Module |
1 |
1 |
1 |
— |
Green LED Module |
1 |
1 |
1 |
— |
Ultrasonic Sensor |
1 |
1 |
1 |
— |
MQ-2 Gas Sensor |
1 |
1 |
— |
— |
PIR Sensor |
— |
1 |
— |
— |
Temperature Sensor |
1 |
1 |
— |
— |
Flame Sensor |
1 |
1 |
— |
— |
Hall Sensor |
1 |
1 |
1 |
— |
Grayscale Sensor |
2 |
2 |
2 |
— |
Photosensitive Sensor |
1 |
1 |
— |
— |
Button Sensor |
1 |
1 |
1 |
3 |
Soil Humidity Sensor |
1 |
1 |
— |
— |
Water Level Sensor |
1 |
1 |
— |
— |
Long-range Photoelectric Sensor |
1 |
1 |
— |
— |
Grove Cable |
10 |
10 |
10 |
10 |
Grove Male-to-Female Cable |
10 |
10 |
10 |
— |
