LED Module
Introduction
The LED module is a basic lighting module. Based on the color of the LED, the module can be categorized into red, green, yellow, and blue LED modules. The only difference between these modules is the color of the LED, and their usage is identical.
Specifications
Item |
Description |
|---|---|
Name |
LED Module |
Code |
B0020036 (Green) |
Voltage |
5V－DC |
Dimensions |
56×24×12 mm |
Control Signal |
Digital Signal / Analog Signal |
Ports |
Grove |
Usage
|
||
|---|---|---|
|
|
|

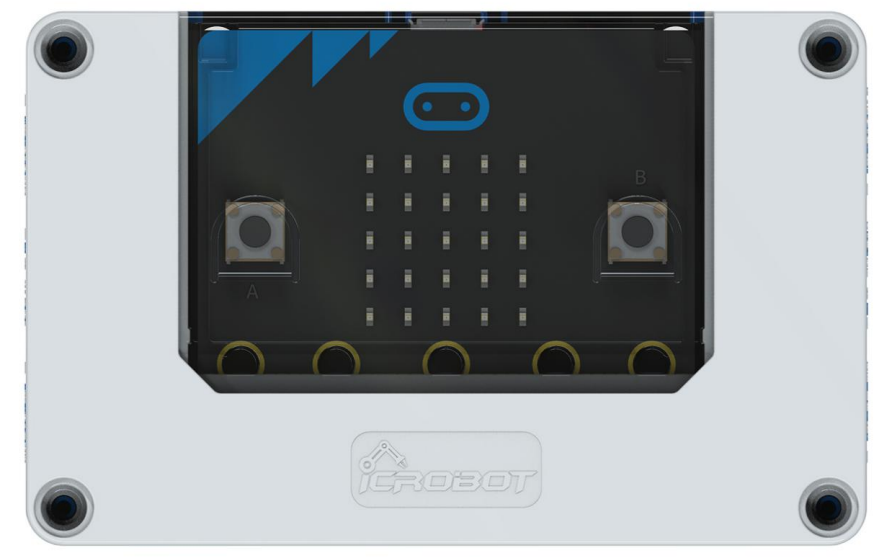

Side View |
Front View |
Side View |

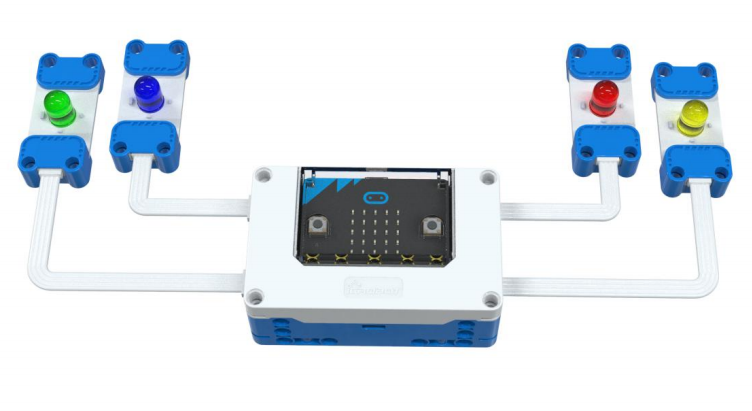

LED Module Connection Diagram |

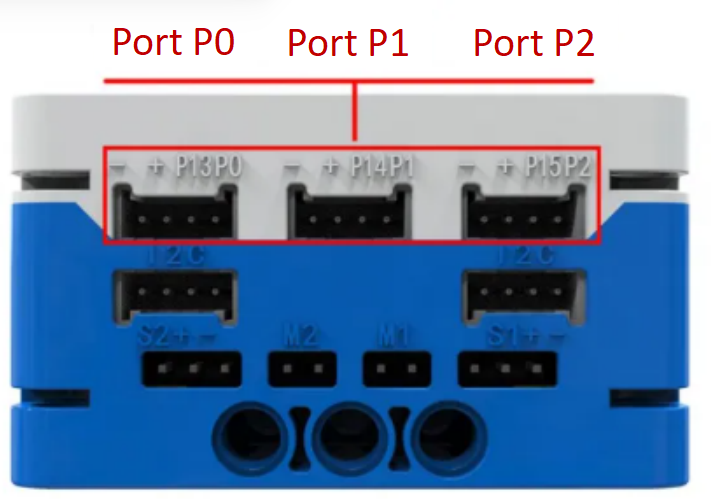

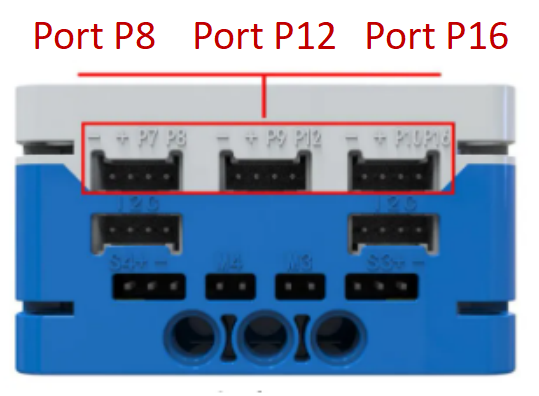

The LED module can be connected to the micro:bit smart hub’s interfaces: P0, P1, P2, P8, P12, and P16.
Modular Coding

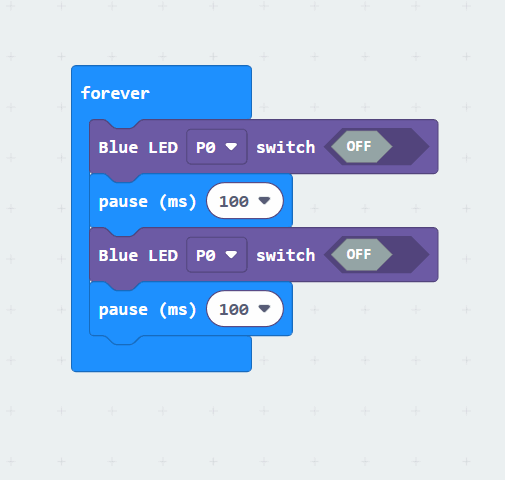

In the MakeCode coding software, by adding the micro:bit extension, you can program the LED module to blink.
