Water Level Sensor

Principle

The water level sensor converts real-time water level changes into corresponding electrical signals. Based on the principle that the voltage generated by a submerged conductor varies with depth, the sensor transmits the detected water level as a voltage signal to a controller. The controller processes and visualizes the data accordingly.

Specifications

Item	Description
Name	Water Level Sensor
Code	B0020016
Voltage	5V－DC
Data Type	Analog Signal
Data Range	0~1023
Ports	Grove
Dimensions	80 × 24 mm

Usage

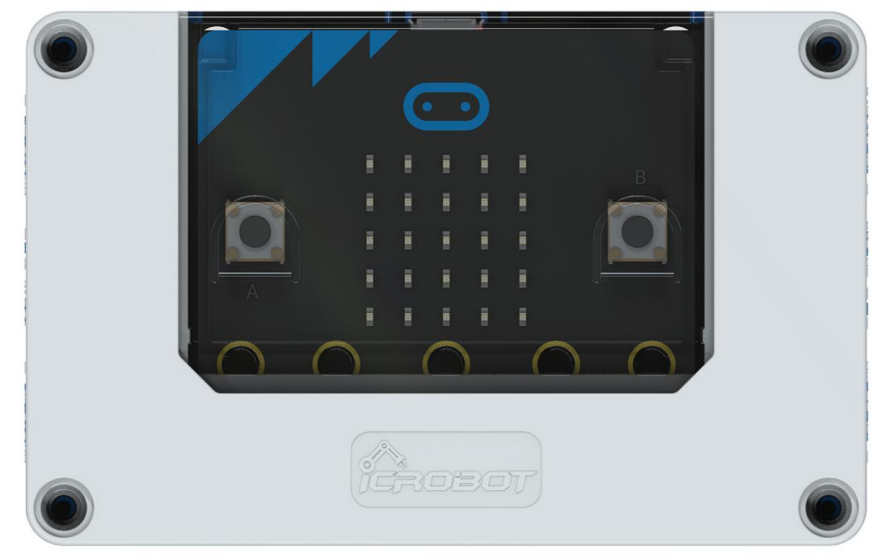

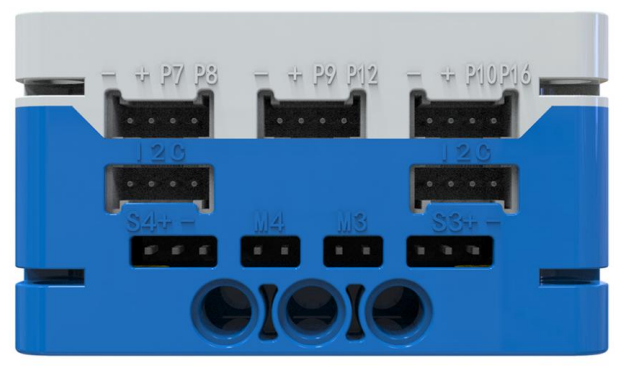

Side View	Front View	Side View

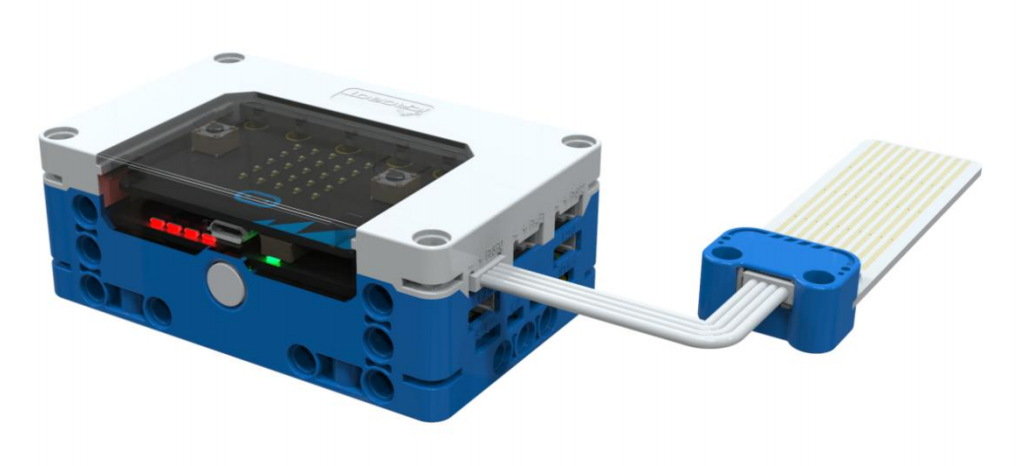

Water Level Sensor Connection Diagram

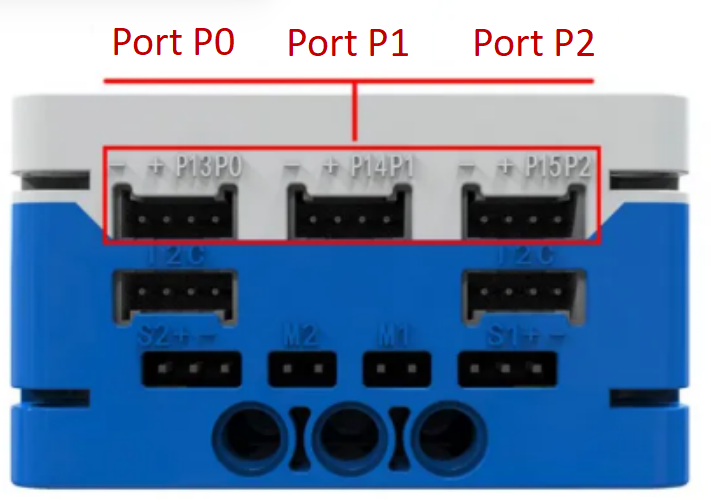

The water level sensor can be connected to the P0, P1, or P2 ports of the micro: bit Intelligent Hub. In the programming environment, you can read the analog values from the water level sensor. The sensor behaves as follows: the higher the water level, the higher the detected value; conversely, the lower the water level, the lower the detected value.

Note: Avoid exposing the components to water to prevent damage to the sensor.

Modular Coding

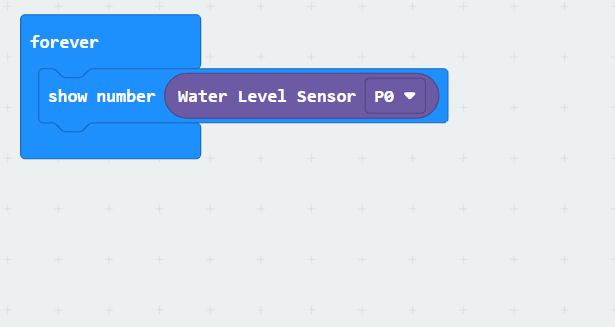

In the MakeCode programming environment, by adding the Microbit extension, you can program the system to read the water level sensor signal from the P0 port and visualize the data on the micro: bit’s LED display.
